Saturday, January 31, 2009

Horizontal sand mill



1. cylindric chamber and cylindric shaft with a row of dispersal plates on it.

2.Complete in specifications:the volume of grinding chamber varies from 5.5L to 250L,which can be custom made.

3.Single or Double mechanical seal,which is optional.

4.with jacket having cooling liquid in it.

5.grinding medium can be Glass beads or Zirconia beads,which is optional

6.the dispersing plate can be non-metallic material,stainless steel or abrasion-resistant alloys,which is optional.

3 rolls milling machine

Specifications


Model Three Rolls Mill Machine
Power 15Kw
Voltage/Frequency 380V,50Hz,3Phase ( can be customized)
Rotation speed 970rpm
Roller Size 405*810mm
Processing Capacity 250kg/hour
Material The part contacting with material is SS304
Lift wooden case
Shape size 2150(L)*1980(W)*1250(H) mm

Steam boiler




The oldest method of rating boilers, still used to rate small boilers, is by boiler horsepower. One boiler horsepower is defined as the ability to evaporate 34.5 lb. of water into steam at 212 °F and above. Large boiler capacity is generally given in lbs of steam evaporated per hour, under specified steam conditions. To convert boiler horsepower (hp) into lb. of steam, multiply hp × 34.5. Maximum continuous rating is the hourly evaporation that can be maintained for 24 hours.

Friday, January 30, 2009

Water pump






Specifications:


* Delivery : up to 16M^3/min.
* Head : up to 13kg/cm^2.
* Rated motor power : 0.5 to 200HP.
* Liquid temperature : -10¢J to 150¢J.
* Viscosity : 1 cp to 30 cp.
* Ambient temperature up to 40¢J.
* Maximum permissible working pressure.
* Up to 5¢V/¢Q^2.

Tensile testing machine


Specification:

Load capacity : up to 500 kg*.
No. of load cell : One.
Cross Travel : Up to 1000mm*.
Speed : Variable between 10mm/minute to 500mm/minute.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

Solar water heater





Solar hot water heater manufactured by BT is pretty suitable to use in the area at high latitude and exposed long hour under the sun. The frame of the BT solar hot water heater adopts the aluminum alloy with anodic treatment and electro-coating. It is able to stand fierce wind and extreme climate. The safety features include protection for over current, electric leakage, over heat, and second level over heat protection when it exceeds 88 degrees centigrade.
This model is widely used in resorts, clubs, hotels, and home stays.

Power Sprayers





Power Sprayer for backpack type with 23 litre chemical tank. And use 22.8cc two-stroke engine.

Power Sprayers(SHP-706A)

Power Sprayer
Model SHP-706A
Diemensions(L x W x H) 315 x 370 x 590 mm
Dry Weight 9 kg
Tank Capacity 22 Lit
Pump Type High Pressure Piston
Revolution 1,600-1,750 Rpm
Discharge Pressure 15-30 kg / cm²
Spray Volume (Lit Min) 4.8 (30 kg / cm²)
Discharge Volume 6.8 / 7.8 (Lit / Min)
Engine Type Japan 2 Stroke
Displacement 22.8 cc
Fuel Tank Capacity 0.85 Lit
Ignition System Electronic Transitor Ignition Control

Motorized notch cutter








Specification:


Depth micrometer : “Mitutoyo” make.
Range : 0 – 25mm with least
count of 0.01mm.
Cutting angle : 45º.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

Peel tester









Specification:


Load capacity : Up to 5 kg.*
No. of load cell: One.
Cross Travel : Up to 250 mm*
Speed : 300 mm/minute.
Direct display : Peak load.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single ph

Inclined plane tester







Specification:


Speed : 1.5º to 2.0º / second.
Weight of the sled: 750 grams.
Size of sled : 4 inch X 2 inch.
Accessories : 2 nos. of S.S templates.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

Hydrostatic pressure testing machine









Specification:


Pressure range : 0 – 100 bar*.
No. of stations : 8 nos.
Pressure input : Through compressed air having pressure upto 5 kg/cm.sq
Pressure output: through hydro-pneumatic pump.
Time range : 0 – 999.9 hours.
Panel mounting : Trolley with castor wheels.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

Hydraulic press









Specification :


Capacity : 5 tonnes*.
Operation : Manual.
Horizontal day light : 12 inch.
Cross travel : 4 inch.
Paint : Powder coated.

Humidity chamber



Specifications

Size of the working chamber : 18 inch X 18 inch x 24 inch*
Material of construction : Inner bath: S.S
Outer body: M.S
Humidity range : 20% RH to 95% RH.
Temperature range : 10ºC to 85ºC
Compressor : CFC free.

Hot air oven








Specification:

Size of working chamber :
12 inch X 12 inch X 12 inch*.
Material of construction : M.S.
Temperature range : Ambient to 250ºC.
Air circulation : Radial fan (It saves power
at least 20% by re-circulating the same hot air
inside the oven).
Timer : Digital presettable with range upto 999 minutes.
Paint : Powder coated.
Power supply : 230 Volts, 5

HDT apparatus











Specification:


Temperature range : From ambient to 300ºC.
No of stations : Two.
Material of construction : Inner bath: S.S
Outer body: M.S
Rate of heating : 120ºC / hour and 50ºC / hour.
Sensor : Range upto 10mm with resolution of 0.01mm.
Weights : A set of weights ranging from 5grams to 2000grams would be supplied for incremental
loads.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

Digital zero degree chamber











Specification:


Size of the working chamber : 16 inch X 16 inch X 16 inch*. Material of construction : Inner bath : S.S
Outer Body : M.S
Temperature range : Ambient to 0ºC.
Compressor : CFC free.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.

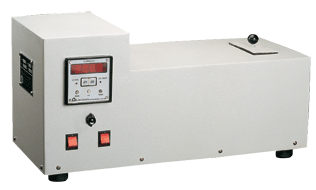

Digital opacity tester








Specification:


Range : 0 – 99.9 % opaque.
Direct display : % opaque.
Paint : Powder coated.
Power : 230 Volts, 50Hz,
single phase.

Dart impact tester






Specification:

Dart : 2 nos.
Weights : A set of weights ranging from 5 grams to 500 grams would be supplied for
incremental loads.
Release mechanism : Electromagnetic.
Vacuum creation : Single stage oil vacuum pump.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phas

charpy impact tester




Specification:

Capacity : Up to 25.00 Joules.
Release angle of pendulum: 150 degree.
Range of four scales : 0-2.71 Joules, 0-5.42 Joules,
0-10.84 Joules, 0-21.68 Joules and 0-25.00 Joules.
Minimum resolution on scale: 0.02 Joule, 0.05 Joule,
0.1 Joule, 0.2 Joule and 0.2 Joule respectively.
Paint : Powder coated.
Power : 230 Volts, 50Hz, single phase.

drilling machine

Type- 1




Highly efficient double - speed electrical motor is adopted for the main electric
motor.

Packing:
Dimensions: 2500 x 1050 x 710mm
Weight: 680 - 1000kg

Our Medium - Size Drilling Machine comply with International Quality Standards and their quality and durability are fully guranteed.






Type-2






Product Specification

Drilling Capacity in steel 23mm
Drilling Capacity in steel 25mm
Tapping cacpacity in steel 20mm
Tapping cacpacity in steel 24mm
columm to center of spindle 215mm
spindle nose to talbe distance 635mm
spindle nose to buse plate 1000mm
speed range 1440 R.P.M 1-H-P.3phase
Tapping in spindle MT-3
pillar diameter 90mm
Pillar Length 1380mm
V-belt B-46






Type- 3







Product Description

Drilling capacity 45mm
Face milling capacity 80mm
End milling capacity 32mm
Max. Distance from spindle nose to table 450mm
Min. Distance from spindle axis to column 260mm
Spindle travel 130mm
Spindle taper M. T. 4 or R8
Step of spindle 6steps

Milling machine

Heavy duty milling machine







• Extra Large Table Size: 58" X 11" (1,437 x 279mm)
• Maximum Uniform Table Capacity: 1200 lbs. (550 kg)
• Spindle motor: 4 HP. Infintely variable speed 55 to 4250 RPM
• Spindle Taper: #40 taper
• Power and Rapid Feeds: in all 3 axes (Longitudinal, Cross, Knee)
• Extra Table Longitudinal X Handwheel on Front of Saddle.
• Square Ways for rigidity and Dove Tail Guides for Accuracy - Hardened and Ground Square Ways
• Head Rotation: Left & Right
• Head Tilt: Front to Back (Knuckle Joint)
• Electrics: 220/440 Volts; 60Hz; 3 Phase NEMA-type Enclosure with disconnect switch and push button controls on head.
Model FTV-4L-SP: Special Precision with Longitudinal & Cross Ball Screws, 3 Axis Digital Readout, Power Draw Bar, Telescopic Metal Way Cover.

Table travel X-axis: manual with power feed 39" (991mm) / 38" (965mm) Cross travel, Y axis: 15" (381)
Knee travel, Z axis: 15 1/8" (484mm)
Ram travel: 22-3/16" (563mm)
Head swivel: +/- 90 degrees
Head tilt: +/- 45 degrees
Distance, spindle to column: 5 to 27"
Power quill feeds to quill/rev. .0015, .003, .006 inch/rev
Quill travel: 5" (127mm)
Machine weight: 4,000 lbs. (1,814 kg)
Power: Dual Voltage Motors 220/440 Volts


Horizontal vertical milling machine







Variable speed on vertical and horizontal spindles
• Quality manufactured in Spain.
• Dynamically balanced vertical head with high velocity cooling sys
• Flood coolant system
• Meehanite castings throughout
• Extra wide saddles
• Precision ground leadscrews
• Class 7 spindle bearings
• Hardened & ground square ways with dovetail guide
• Dual knee & table locks
• One shot lubrication system
• Outboard column support for added rigidity
• 1200 lb. table load capacity
• Heavy duty No. 40 taper spindle, horizontal & vertical heads. Both are variable speed.
Table size: 58" x 11"
Table travel X-axis: 37" manual / 33 5/8" using optional power feed
Cross travel, Y axis: 17 ½"
Knee travel, Z axis: 16"
Ram travel: 22 ½"
Machine weight: 4410 lbs.
Vertical Milling Head:
Infinite variable speed motor: 3 HP, 70 to 4200 RPM
Head swivel: +/- 90 degrees
Head tilt: +/- 45 degrees
Quill travel: 5"
Horizontal Milling Spindle:
Variable speed motor: 5.5 HP, 35 to 1800 RPM (hi-low)
Distance from spindle center to ram: 5 ¾"

Lathe machines

Automatic lathe machine























This machine is ideal for flexibly processing electronic & electrical parts, auto parts, pneumatic and hydraulic control parts, and parts for sanitary ware, valves and gas equipment, either in large or small quantity.




Extra heavy duty lathe machine






Bed Length 5+1/2’ to 30’
Bed Width 12.75” to 36”
Center Height 10” to 34”
Spindle Bore 54mm to 180mm




Heavy duty lathe machine







Bed Length 5+1/2’ to 14’
Bed Width 12.75” to 16”
Center Height 10” to 14”
Spindle Bore 54mm to 125mm



Medium lathe machine






Bed Length 5+1/4’ & 6’
Bed Width 11"
Center Height 9"
Spindle Bore 54mm





Light duty lathe machine




Bed Length 3+1/2’ & 4+1/2’
Bed Width 9"
Center Height 6+1/2"
Spindle Bore 40mm
